Rider Heights 4’10” – 6’4″ (Bike inseam between 25″ and 35″) Frame Size 14.6″ (370 cm) Handlebar Height 42.5″ – 43.5″ (108 – 110.5 cm) Handlebar Reach 18.1″ (46 cm) Seat Height 28″ – 35.4″ (71 – 90 cm) Seat Dimensions (LxW) 9″ x 11.5″ (22.9 – 29.3 cm) Standover Height 13.4″ (34 cm) Total Length 59.3″ (151 cm) Width (at widest point) 33″ (84 cm) Wheelbase 41.3″ (105 cm) Dropout Width Front: 155 mm Bottom Bracket Shell Width 73 mm shell, 124.5 mm spindle Seat Tube Length 14.6″ (37 cm) Top Tube Length N/A Chainstay 20.7″ (52.5 cm) Handlebar Width 26.8″ (68 cm) Crank Length 152 mm Seatpost Diameter 27.2 mm Max Tire Width 2.75″ Bike Weight 82 lb (with battery) Battery: 8.4 lb Payload Capacity 415 lb: 325 lb max rider weight, 60 lb max on rear rack, 30 lb on optional front rack Folded Dimensions 59.3″L x 33″W x 29″H

RadTrike

Q: Electronics

Battery 480 Wh Bikes shipped to NYC are compliant with UL 2849 and 2271. Charger 48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets Controller Custom Rad Power Bike controller; 48V, 750W Display Battery charge, pedal assist level, and headlight Hub Motor 750W brushless Rad Power Bikes geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions Lights Auto-on feature Front: LED headlight Rear: Integrated taillight with brake light Pedal Assist Intelligent 5 level pedal assist with low profile cadence sensor Range Estimated 20-55+ miles per charge (32-88 km) Throttle Half twist throttle Top Speed 14 mph Wiring Water resistant connectors and wiring harness USB Ports Optional, sold separately

The Unexpected Joyride

1,713 Reviews

Rated 5 out of 5

$1,599

JUST ARRIVED COME TEST RIDE TODAY!

14

MPH

55+

Mile Range

$1,599

JUST ARRIVED COME TEST RIDE TODAY!

Sit back, relax, and enjoy the ride. The single most-requested model in our lineup combines the power of an electric bike with confidence-inspiring stability. Whether you’re riding for work or play, the RadTrike is more comfortable, more accessible, and more fun than you’d ever expect.

Key Features

Gear & Accessories

ATV Wholesale Maintenance Plan

Electronics

Battery

480 Wh
Bikes shipped to NYC are compliant with UL 2849 and 2271.

Charger

48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets

Controller

Custom Rad Power Bike controller; 48V, 750W

Display

Battery charge, pedal assist level, and headlight

Hub Motor

750W brushless Rad Power Bikes geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions

Lights

Auto-on feature
Front: LED headlight
Rear: Integrated taillight with brake light

Pedal Assist

Intelligent 5 level pedal assist with low profile cadence sensor

Range

Estimated 20-55+ miles per charge (32-88 km)

Throttle

Half twist throttle

Top Speed

14 mph

Wiring

Water resistant connectors and wiring harness

USB Ports

Optional, sold separately

Components

Bell

Yes

Brakes

Front mechanical disk brake and a rear coaster (foot-operated) brake

Brake Lever(s)

Single aluminum alloy comfort grip lever with motor cutoff switch and orange parking brake

Brake Pad Material

Semi-metallic

Brake Rotors

C-star 180 mm on front wheel

Chain

PYC 120 links, PYC 35 links

Crank Set

42T, 152 mm crank length, square-taper, steel chainring, alloy crank

Derailleur

n/a

Fenders

Included, full coverage front and rear

Fork

Rigid steel fork

Frame

Chromoly steel

Freewheel

16 tooth freewheel on rear axle

Gearing

Single speed

Grips

Durable ergonomic rubber grips

Handlebar

Aluminum alloy high rise, 680 mm wide, 10.3″ rise, 20 degree handlebar sweep

Headset

Semi-integrated, 1-1/8″ straight steerer tube

Kickstand

N/A

Pedals

Wellgo composite platform with reflectors, standard 9/16″ x 20 TPI threading

Racks

Rear: Integrated, 60 lb carrying capacity

Rims

Single wall aluminum, 32 hole
Rim width: 30 mm

Saddle

Cushioned saddle with adjustable height backrest

Seatpost

440 mm x 27.2 mm

Seatpost Clamp

Quick release

Shifter

N/A

Spokes

14 gauge stainless steel, black

Stem

50 mm + 30º (35 mm rise)

Tires

Exclusive Rad Power Bikes by Kenda Kontact 18″ x 2.25″, K-Shield puncture-resistant liner

Size Guide

Rider Heights	4’10” – 6’4″ (Bike inseam between 25″ and 35″)
Frame Size	14.6″ (370 cm)
Handlebar Height	42.5″ – 43.5″ (108 – 110.5 cm)
Handlebar Reach	18.1″ (46 cm)
Seat Height	28″ – 35.4″ (71 – 90 cm)
Seat Dimensions (LxW)	9″ x 11.5″ (22.9 – 29.3 cm)
Standover Height	13.4″ (34 cm)
Total Length	59.3″ (151 cm)
Width (at widest point)	33″ (84 cm)
Wheelbase	41.3″ (105 cm)
Dropout Width	Front: 155 mm
Bottom Bracket Shell Width	73 mm shell, 124.5 mm spindle
Seat Tube Length	14.6″ (37 cm)
Top Tube Length	N/A
Chainstay	20.7″ (52.5 cm)
Handlebar Width	26.8″ (68 cm)
Crank Length	152 mm
Seatpost Diameter	27.2 mm
Max Tire Width	2.75″
Bike Weight	82 lb (with battery) Battery: 8.4 lb
Payload Capacity	415 lb: 325 lb max rider weight, 60 lb max on rear rack, 30 lb on optional front rack
Folded Dimensions	59.3″L x 33″W x 29″H

Playlist

6 Videos

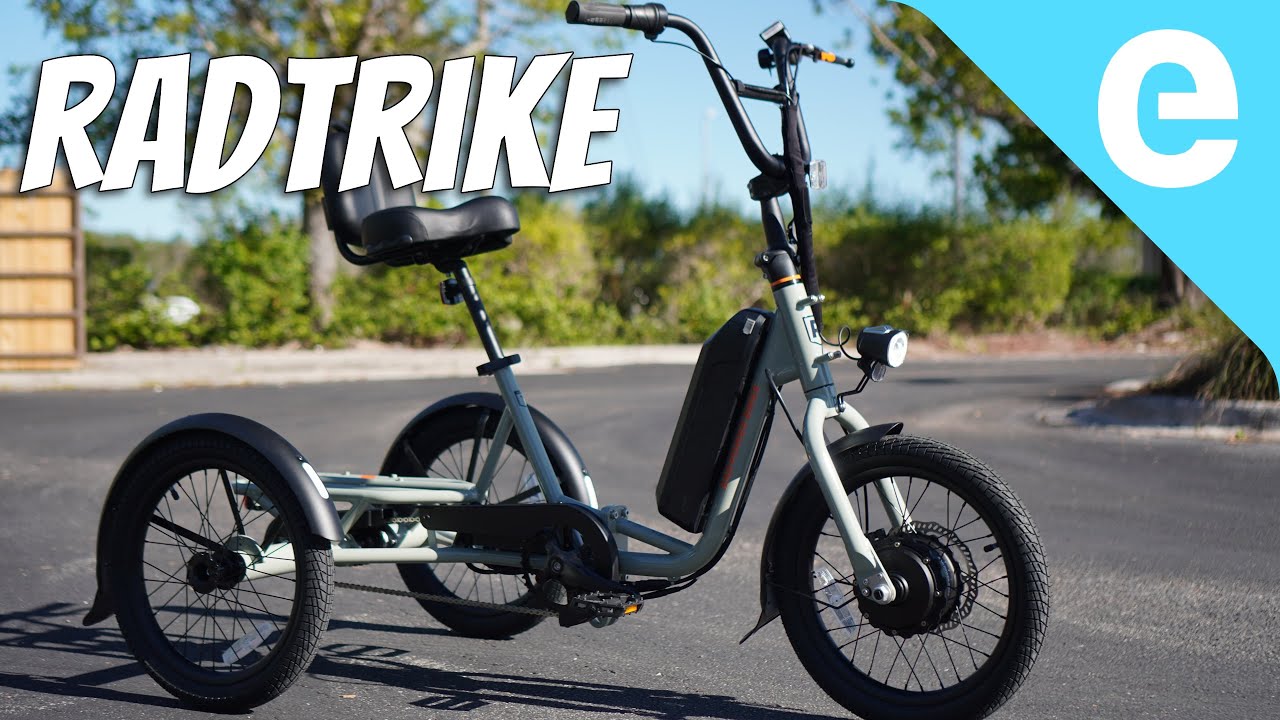

RadTrike review: Testing out Rad Power Bikes electric 3-wheeler
